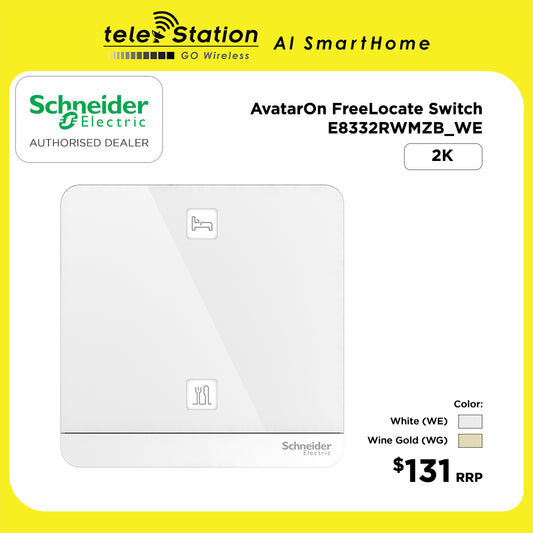

Schneider Electric AvatarOn E833xRWMZB is a freelocate switch with Zigbee 3.0 communication type for indoor use. Unobtrusive in daytime, the fluorescent LED locator glows with a soft luminescence in the dark, indicating the exact location of each switch at night. The battery type it uses is CR2032, whose battery life is 2 years generally. With 4 channels and 4 function keys, this Wiser freelocate switch is not only an on-off switch, but also a remote control for groups of devices. The switch’s rated operational voltage is 3V. This device enables both flush and surface mounting. 86mm, 86mm and 4mm are the width, height and embedding depth of this device respectively. It is also compliant with RoHS. This device complies standards of IEC 60669-2-5, EN 60669-2-5 and CE. meeting standards of IEC 60669-2-5, EN 60669-2-5 and CE. The color of this device is wine gold.
Specifications
Main
| Product brand |
Schneider Electric |
| Range |
AvatarOn |
| Product or component type |
RF switch |
Complementary
| Device presentation |
Complete product |
| Mobile App name |
Wiser by SE |
| Concentrator compatibility |
Wiser hub generation 1 |
| Technology type |
Electronic |
| Number of rocker |
1 |
| Colour tint |
White / Wine gold |
| [Ue] rated operational voltage |
3 V DC |
| Number of FUNCTION keys |
2 / 4 |
| Battery size |
2 CR2032 |
| Battery life |
2 year(s) |
| Local signalling |
Status indication: LED (white/blue)
Programmable: LED (green/red/orange)
|
| Number of channels |
2 / 4 |
| Communication network type |
Wireless Zigbee (2.4 GHz) at < 50 m |
| Device mounting |
Surface |
| Embedding depth |
4 mm |
| Width |
86 mm |
| Height |
86 mm |
| Standards |
EN 60669-2-5
IEC 60669-2-5
CE |
| Product certifications |
Zigbee 3.0 |
Environment
| Ambient air temperature for operation |
-10…45 °C |
| Relative humidity |
10…95 % |
| Environmental characteristic |
Indoor use |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
5.5 cm |
| Package 1 Width |
9.5 cm |
| Package 1 Length |
12.5 cm |
| Package 1 Weight |
212 g |
| Unit Type of Package 2 |
S02 / CAR |
| Number of Units in Package 2 |
20 |
| Package 2 Height |
15 cm |
| Package 2 Width |
30 cm |
| Package 2 Length |
40 cm |
| Package 2 Weight |
4.76 kg |
| Unit Type of Package 3 |
P06 |
| Number of Units in Package 3 |
480 |
| Package 3 Height |
105 cm |
| Package 3 Width |
60 cm |
| Package 3 Length |
80 cm |
| Package 3 Weight |
124.12 kg |
Contractual warranty
