Philips Hue Tap dial switch

Control up to three Rooms or a Zone with each individual button of the Tap dial switch, available in black or white. Turn the dial to dim and brighten the lights. Mount it to the wall, place it on a magnetic surface, or use it as a remote control.



Product highlights

• No-wire installation
• Smooth dimming
• Battery powered
• Mount anywhere
• Easy access to light scenes

Convenient versatility

Control your entire smart lighting system from anywhere in your home — without your phone or tablet.

Control it your way

Connect your Philips Hue lights with the bridge and start discovering the endless possibilites. Control your lights from your smartphone or tablet via the Philips Hue app, or add switches to your system to activate your lights. Set timers, notifications, alarms, and more for the full Philips Hue experience. Philips Hue even works with Amazon Alexa, Apple Homekit and Google Home to allow you to control your lights with your voice.

Set scenes instantly

With a sleek, matte design in both black and white, the Philips Hue Tap dial switch lets you set scenes in any room of your home. Program each button to control 3 separate Rooms or a Zone — and choose a scene for each.

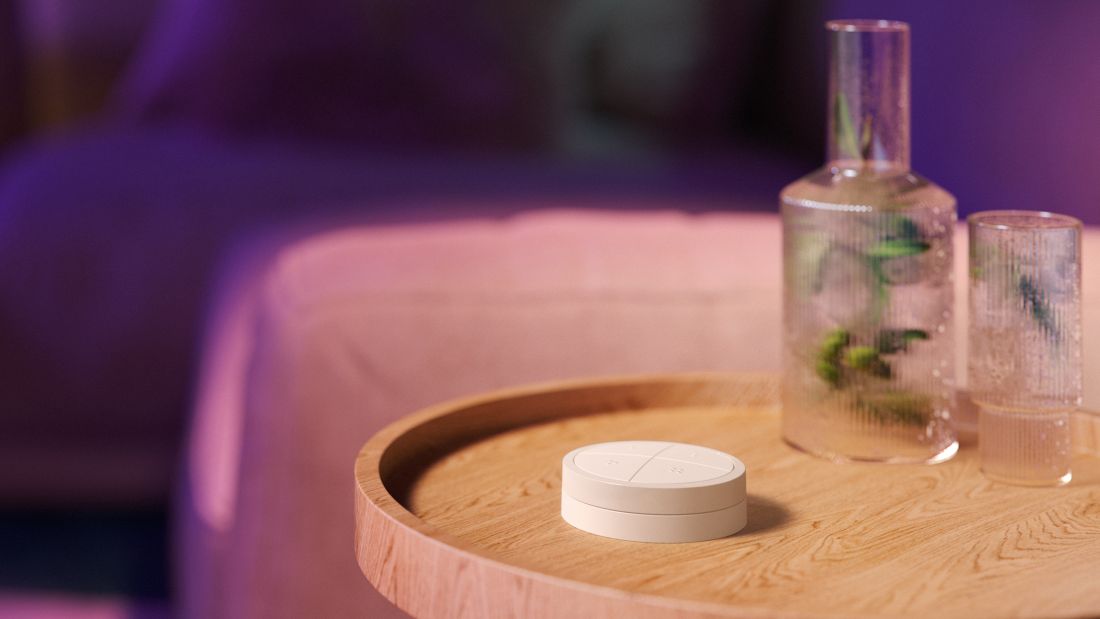

Use it your way

Mount the Tap dial switch to the wall with its adhesive backing, attach it to any magnetic surface, or remove it from the wall plate and use anywhere in your home as a remote control.

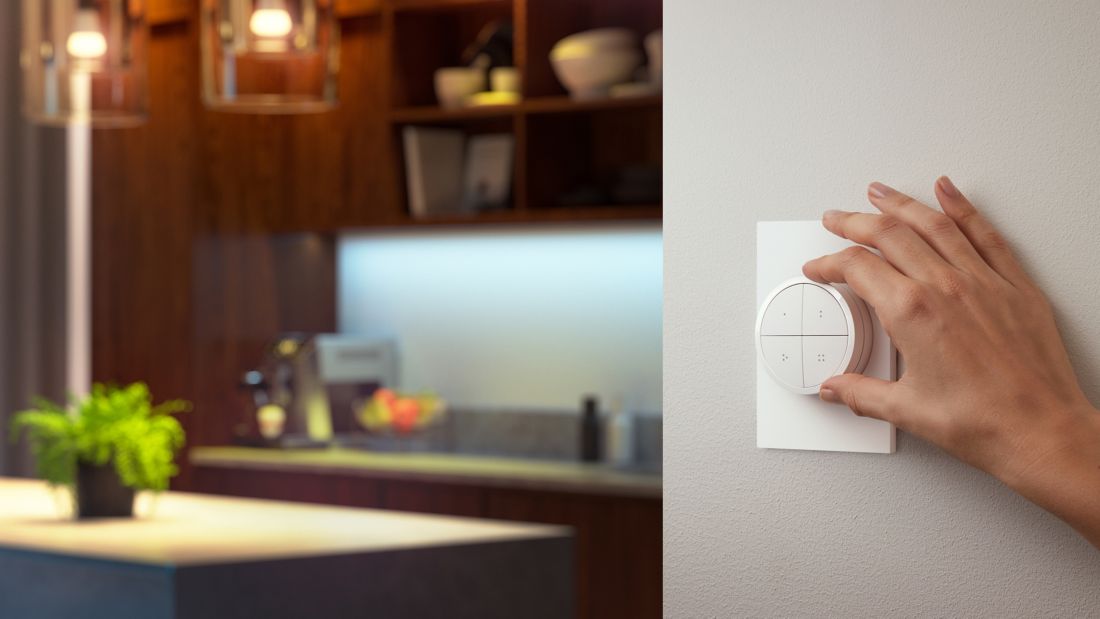

Rotate to dim and brighten easily

For precise lighting levels, turn the dial slowly to dim or brighten in smaller increments. Turn it faster to quickly brighten or dim the room.

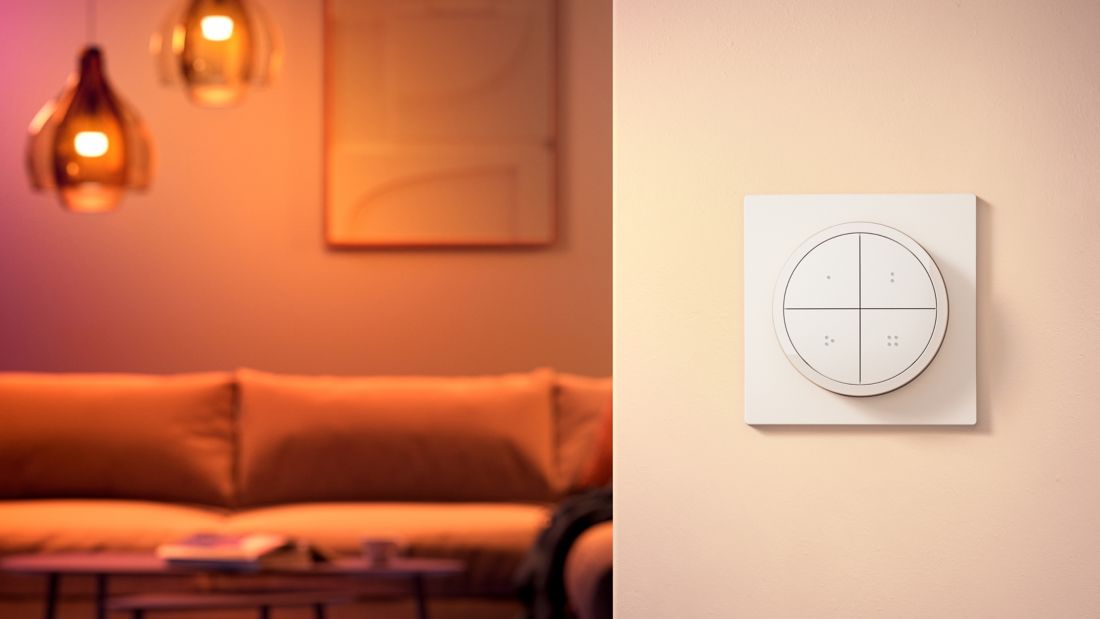

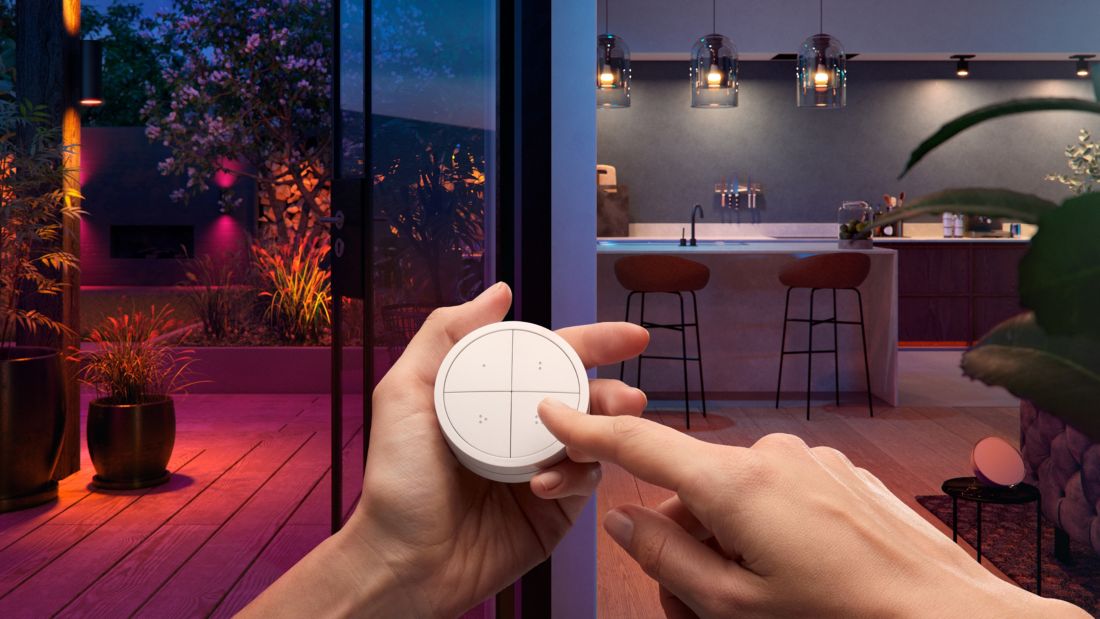

Use as a remote or mount to the wall ​

Attach the Tap dial switch to the wall with its adhesive backing, place on any magnetic surface, or simply remove it from the wall plate to use as a remote control.





Specifications

Design and finishing

Color: White

Material: Synthetic



Environmental

Operational humidity: 0%<H<80% (non condensing)

Operational temperature: 0°C - 40°C



Extra feature/accessory incl.

Portable: Yes

Guarantee

2 years: Yes



Packaging information

EAN: 8719514441057



Power consumption

Energy Efficiency Label (EEL): n/a



Product dimensions and weight

Net weight: 0.07 kg

Height: 2 cm

Length: 6 cm

Width: 6 cm



Service

Warranty: 2 year(s)



Technical specifications

Number of configurable buttons: 4

Battery type: CR - Button cell

Class of protection: Class III



The switch

Batteries included: 1 x CR2032

Configurable buttons: 4 buttons and 1 dial

Frequency band: 2400 - 2483.5 MHz

IP rating: IP20

Lifetime: 50.000 clicks / 12.000 turns

Max. lights per switch: Not applicable

Minimal battery lifetime: 2 year(s)

Mounting options: freestanding, wall

Software upgradeable: when connected to Hue bridge

Wall plate depth: 6 mm

Wall plate height: 125 mm

Wall plate width: 80 mm



What's in the box

Hue dimmer switch: n/a



What's supported

HomeKit compatible: Yes

Philips Hue App: IOS 15 and above, Android 10.0 and above



Packaging dimensions and weight

EAN/UPC - product: 8719514441057

Net weight: 0.1 kg

Gross weight: 0.17 kg

Height:174 mm

Length: 86 mm

Width: 72 mm

Material number (12NC): 929003500302



Other

No manual available

At the end of (economic) life dispose the product according to local rules and do not dispose the product with regular household waste. The correct disposal of your product will help prevent potential negative consequences for the environment and human health

No dismantle information available
